Automatic Pallet Changer Guide: How APCs Keep Your Spindle Cutting

An automatic pallet changer (APC) is a CNC machine option that swaps a finished pallet out of the work zone and a loaded one in, often in under 10 seconds on VMC-size machines. The operator sets up the next job outside the machine while the current one cuts. The spindle stops waiting on people, so the same machine makes more parts per shift.

That waiting is bigger than most shops think. In a Makino survey of more than 100 U.S. shops, the average vertical machining center was in-cut only 34% of the workday, against a realistic target of 70%. Most of the gap is loading, unloading, clamping and checking offsets. An APC moves that work outside the machine.

The rest of this guide covers how an APC works, the main types, what they cost and how to pick one for your machine.

What Is an Automatic Pallet Changer (APC)?

A pallet is a precision plate that holds your fixtures, vises or parts. An automatic pallet changer is the mechanism that moves pallets between the machine table and a load station on command from the CNC control. One pallet is always in the cut. The other is waiting, loaded and ready.

The simplest automatic pallet changer has two pallets. Larger systems, called pallet pools, store many pallets in racks or towers and feed them to the machine on a schedule. Horizontal machining centers usually ship with an APC as standard. Most VMCs and 5-axis machines do not, which is why the retrofit market exists.

APC vs ATC: What's the Difference?

An ATC (automatic tool changer) swaps cutting tools. An APC swaps workholding and parts. The ATC cuts tool-change time during the cycle. The APC cuts part-change time between cycles. A machine with both can run a full queue of jobs with no hands on the table.

Is a CNC Pallet Changer the Same as a Warehouse Pallet Changer?

No. Search "pallet changer" and you will also find load-transfer machines and pallet inverters. Those move shipping loads from wooden pallets to plastic ones in warehouses and food plants. This guide covers CNC machining only.

With the definition settled, the next question is what actually happens during those few seconds.

How an Auto Pallet Changer Works, Step by Step

Every auto pallet changer follows the same basic sequence, whatever the machine builder or style:

1. Finish the cycle. The program ends, the spindle stops and the machine moves to a safe pallet-change position.
2. Call the change. An M-code starts the sequence. Haas uses M50 on its pallet-changing machines. Other builders use M60 or their own code, so check your programming manual.
3. Unclamp. The receiver on the table releases the pallet, usually with hydraulic or pneumatic pressure.
4. Move. The changer lifts and rotates, slides on a shuttle, or is carried by a robot or the machine's own axes.
5. Seat and clamp. The new pallet drops onto locating cones or zero-point pins, then clamps.
6. Confirm. Sensors verify the pallet is seated before the control allows the next program to run.
7. Cut. The next job starts, often with its own program and work offset for each pallet.

Locating, Clamping and Repeatability

The swap is the easy part. Landing the pallet in the same spot every time is the hard part. Good systems use tapered cones or zero-point receivers that pull the pallet down and center it. Factory APCs commonly quote pallet repeatability around 0.004 to 0.005 mm. Quality zero-point systems used on pallet automation claim 0.0002 in (about 5 microns) or better.

That repeatability is what keeps your work offsets valid. If a pallet seats 0.002 in off, every part on it is wrong. In our experience, the most common cause of APC seating alarms is not a mechanical failure. It is a chip or a film of coolant on a cone or clamping face.

Control Integration and Pallet Scheduling

On a two-pallet machine, the control simply alternates. On a pool, a pallet schedule table assigns each pallet a program, a priority and a status such as loaded, in process, done or skipped. Good controls also include an APC recovery routine. It walks the operator back to a known state after an alarm mid-swap, and that matters more on night shifts than any swap-time spec.

How the pallet physically moves is what separates one type of system from another.

Types of Pallet Changer Machines and Pallet Automation Systems

Pallet automation systems fall into six practical groups. The right one comes down to your machine, your part mix and how much floor space you can give up.

Dual-Pallet Rotary (Swing) APC

Two pallets sit on a rotating arm or turntable at the front of the machine. The changer lifts both, spins 180 degrees and sets them down. This is the standard design on HMCs and on VMCs sold as "APC models." It is fast, compact and built into the machine. The tradeoff is that you only get two pallets.

Shuttle Pallet Changers

A shuttle slides pallets in a straight line from a load station beside the machine onto a receiver on the table. Shuttles are the most common retrofit pallet changer machine for existing VMCs. They also scale up to bridge mills and double-column machines that handle very heavy parts. Swaps take seconds on a VMC and can stretch to minutes on large machines.

Multi-Pallet Pools (Single-Level, Two-Level, Tower)

A pallet pool stores many pallets and feeds them one at a time. Single-level pools lay pallets out in a row. Okuma, for example, offers single-level pools with 4 to 12 pallets. Two-level and tower designs stack pallets to save floor space. Pools are the go-to for high-mix shops because each pallet can hold a different job.

Robotic Pallet Loaders

Here a robot arm pulls pallets from a rack and loads them into the machine. Machine builders sell these as packages, typically a 25 to 30 kg robot with a rack and a few zero-point pallets that expands to 15 pallets or more. These systems need a robot cell, guarding and a light curtain beside the machine. Pallets tend to be small, often around 8 in square, to stay within the robot's payload.

In-Machine Pallet Automation (No Robot, No Extra Floor Space)

This is the newest approach, and most buyers have not seen it yet. Instead of an outside robot or shuttle, a pallet actuator mounts to the spindle head and the pallet shelves sit inside the machine enclosure. The machine's own axes do the moving. Nothing new sits on the floor, and the enclosure doors and interlocks you already have handle the guarding.

Our in-machine pallet automation for Haas UMC 5-axis machines works this way and holds 9 to 24 pallets, depending on pallet size and machine model. The limit is part size. Pallets have to fit inside the work envelope with room to move, so this suits small and medium parts rather than large castings.

Manual Pallet Changers

The operator slides the pallet by hand onto a receiver. There is no automatic swap, but setup still happens outside the machine. For a tight budget, a manual changer captures much of the setup-time gain at a fraction of the cost.

Pallet Changer Types Compared

Picking a type only matters if the gain is real for your shop. That comes down to numbers.

Benefits of an Automatic Pallet Changer on CNC Machines

The core benefit is simple. The spindle stops waiting. Here is what that looks like on the floor:

1. Cut non-cut time. Loading, clamping and part checks move outside the machine.
2. Set up the next job while the current one runs. First-article checks and fixture changes no longer stop production.
3. Extend unattended runs. A loaded pool can carry a machine through breaks, shift changes and part of the night.
4. Run mixed work on one machine. Op 1 on one pallet, Op 2 on another, or a 50-piece job next to a 2,000-piece job.
5. Let one operator run more machines. Pallets load on the operator's schedule, not the machine's.
6. Quote with more confidence. Changeover time becomes predictable, so cycle estimates hold up.

The HMC is the proof. Okuma has said HMCs average more than three times the spindle utilization of VMCs, mainly because HMCs come standard with a pallet changer.

Pallet Changer vs Robot Part Loading vs Spindle-Based Tending

There are three common ways to automate a CNC machine. Each wins under different conditions.

Here is our position. If your parts change often, pallets beat part tending, because a pallet carries its whole setup with it. Swapping jaws, grippers and programs on a robot for every new job eats the time you meant to save. If you run thousands of one simple part, skip pallets. A spindle-mounted gripper with an automatic vise loads blanks for far less money.

The two can also work together. A robot loads raw stock onto pallets, and the pallet changer feeds the machine. That gives the robot time to do its job carefully instead of racing the spindle.

Once the approach is clear, budget usually decides the rest.

How Much Does an Automatic Pallet Changer Cost?

Prices run from low five figures to well into six figures. Few vendors publish them, so here are the anchors we could verify as of October 2026:

• Used or remanufactured shuttle APCs: public listings for older VMC shuttle units sit around $14,500.
• In-machine pallet automation for 5-axis: starts at $49,000 for our Haas UMC system, before workholding choices.
• Robotic pallet loaders: sold as packages through machine builder dealers. Get a current quote, since pricing changes with pallet count and options.
• Factory pallet pools: quoted with the machine. In our experience, a dedicated pallet pool for a 5-axis machine can cost as much as the base machine itself.
• Factory APC models: a VMC bought with an APC costs more than the same machine without one. Compare that gap against a retrofit before deciding.

What Drives Pallet Changer Price

• Pallet count and storage style
• Pallet size and load rating
• Zero-point system and clamping type (hydraulic, pneumatic, manual)
• Guarding such as light curtains, fences and interlocks
• Control integration and scheduling software
• Workholding on each pallet, which buyers often forget to budget

That last item catches people out. Ten pallets need ten sets of vises or fixtures. Good zero-point workholding makes those pallets repeatable, and it is often a large share of the real system cost.

For payback, use a simple formula: system cost ÷ (recovered hours per month × shop rate) = months to payback. In the example above, about 24 hours recovered per month at $100 per hour returns roughly $2,400 per month. Our automation ROI calculator runs the same math with your own numbers.

Price narrows the field. Fit picks the winner.

How to Choose the Right Pallet Automation System

Start with your parts before you compare any pallet changer machine. This checklist follows the order we work through with shops:

1. Measure non-cut time. Time a full changeover on your three most common jobs. If it is under a minute, an APC will not change much.
2. Check the envelope. Compare pallet size, fixture height and load rating against your heaviest recurring job.
3. Count the jobs, not the pallets. Plan which job lives on which pallet. Fixture strategy matters more than pallet count.
4. Confirm the control interface. Make sure your machine has the M-code outputs and inputs the system needs. Older controls may need an I/O kit.
5. Plan the guarding. Anything outside the enclosure needs a light curtain or fence. Systems inside the enclosure use the machine's own door interlocks.
6. Check air and hydraulics. Pallet clamping needs clean, dry, steady air or a hydraulic supply.
7. Measure the floor. Shuttles, pools and robot cells all need space beside or in front of the machine.
8. Plan chip control. Decide how chips will be kept off cones, receivers and stored pallets before you order.

Retrofit vs Factory-Integrated APC

Buy factory-integrated if you are buying a new machine anyway and run mostly production work. The APC, control and warranty come from one source. Retrofit makes sense when you already own good machines and want more output from them. A retrofit also lets you choose the pallet count and style that fit your parts, rather than what the builder offers.

Pallet Automation for 5-Axis Machines

Five-axis machines like the Haas UMC-500 and UMC-750 have trunnion tables, which rules out most front-mounted shuttles. Owners usually choose between a robotic pallet loader beside the machine and an in-machine system. If floor space is tight or you would rather not add a robot cell, the in-machine route is worth a close look. The next section shows how ours works.

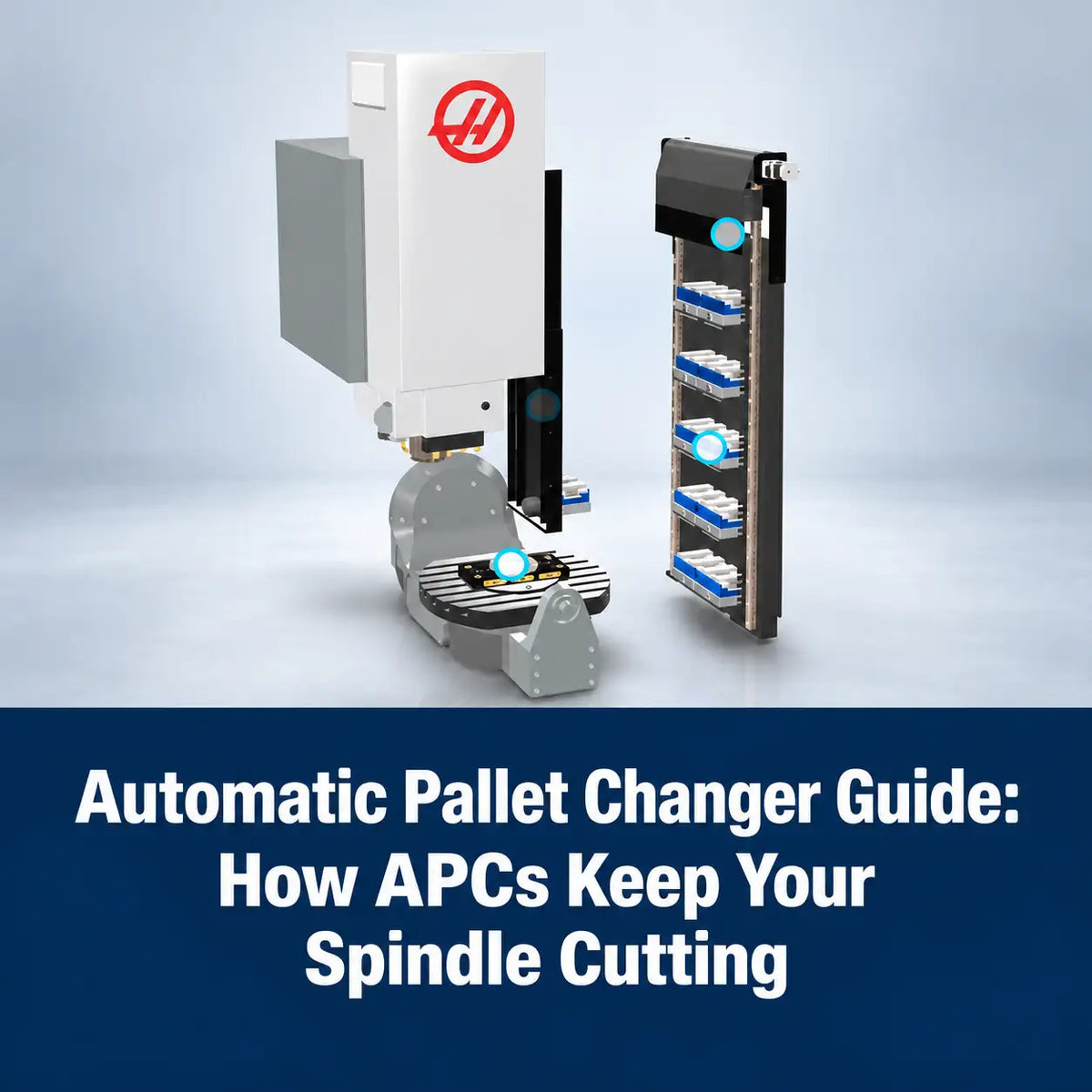

IntraLoad™: In-Machine Pallet Automation for Haas UMC

IntraLoad™ turns a Haas UMC into a pallet cell without adding a robot or taking floor space. A pneumatic actuator mounts to the spindle head and tucks away when not in use, so it does not affect 5-axis clearances. Pallets live on shelves inside the enclosure, where the machine's door interlocks already protect them.

Maintenance is light. The routine work is wiping down the internal auto-door and greasing the linear rails.

See IntraLoad™ Pallet Automation

With the system chosen, the next step is knowing where it pays off fastest.

Best-Fit Applications and Industries

Shops that gain the most from automatic pallet changers share one trait: setups eat more time than cutting does. Common fits include:

• Mold and die: long cycles, with pallets used for overnight queues
• Aerospace brackets and housings: families of parts with shared fixtures
• Medical and precision OEM parts: small batches with strict repeatability
• Defense and contract job shops: high mix and constant job changes
• Op 1 / Op 2 work: one pallet per operation, run back to back

Weak fits exist too. A shop running one simple part at high volume often does better with part tending, as covered above.

Whatever the fit, the system only earns its money if it keeps running.

APC Safety, Chip Control and Maintenance

Most APC problems are dirt problems. Chips and coolant film on locating surfaces cause more seating faults than worn parts do. Build these habits in from day one:

1. Blow off cones and receivers at every load, or add an air blast to the change cycle.
2. Keep the air dry. Water in the line damages valves and clamp seals.
3. Check seals and wipers on the receiver monthly.
4. Test sensors. A failed seat sensor can let a pallet clamp crooked.
5. Practice APC recovery with every operator before they run nights.
6. Protect stored pallets from chips with an auto-door, a guard pallet or a coolant washdown.

Safety depends on where the pallets live. Systems outside the enclosure need light curtains or interlocked fences so a swap cannot start while someone is in the load zone. Systems inside the enclosure rely on the machine's own door interlocks.

That leads to the question every buyer asks sooner or later.

Can an Automatic Pallet Changer Support Lights-Out Machining?

Yes, with conditions. An APC gives the machine enough work to run unattended. It does not make that run safe on its own. Lights-out success depends on a stable process, tool life management and probing or broken-tool detection.

Our advice is to start small. Run the pool through a lunch break, then a shift change, then a few hours after close. Extend the window only when the parts come off good. An APC is a capacity tool. Treat process control as a separate job.

Frequently Asked Questions

What is a pallet in a CNC machine?

A CNC pallet is a precision plate that holds fixtures, vises or parts and mounts to the machine table through locating cones or a zero-point receiver. Because parts are set up on the pallet rather than the table, you can load one pallet outside the machine while another is being machined.

How fast is an automatic pallet changer?

Most VMC-size dual-pallet auto pallet changers swap in about 4 to 10 seconds, based on published specs. Larger machines take longer. Shuttle changers on bridge mills can take a few minutes because the pallets are much heavier. Swap time matters most when cycles are short and changeovers are frequent.

Can I add a pallet changer to an existing VMC?

Yes. Retrofit shuttle pallet changers and pallet pools are made for many common VMCs. The machine needs space beside it, a table that can take the receiver and control I/O to trigger the change. Some older controls need an I/O or relay kit first.

What is the best automatic pallet changer for a small shop?

For most small shops, the best APC is one that adds no floor space and needs no robot cell. That means a dual-pallet VMC if you are buying new, a shuttle retrofit on an existing VMC, or an in-machine system on a 5-axis. Match pallet size to your most common parts.

How many pallets do I need?

Count jobs and hours, not pallets. Two pallets cover setup-while-cutting. For unattended runs, divide the hours you want to cover by your average cycle time per pallet. For example, 8 hours with 45-minute cycles needs about 11 loaded pallets. Each pallet also needs its own workholding.

Do pallet changers work with 5-axis machines?

Yes. HMC-style 5-axis machines often have factory APCs. Trunnion 5-axis machines like the Haas UMC usually use a robotic pallet loader or an in-machine system, because the trunnion blocks most shuttle designs. Zero-point pallets are standard in both setups.

What M-code calls a pallet change?

It varies by machine builder. Haas uses M50 to run a pallet change on its pallet-changing machines. Other builders use M60 or their own codes, and pallet pools add scheduling commands on top. Always confirm the code in your machine's programming manual before writing pallet programs.

How much weight can an APC pallet hold?

It ranges widely. Robot-loaded and in-machine systems for small 5-axis machines often handle 25 to 50 lb per pallet. Factory VMC APCs commonly rate a few hundred pounds per pallet. Large shuttle changers for bridge mills handle thousands. Always size to your heaviest fixture plus part, not the part alone.
