RotoGrip™ 16C Pneumatic Collet Chuck - Automated Rotary Air Collet Chuck for CNC Machines
✓ In Stock
✓ Ships in 1-3 Business Days
✓ Ships in 10-14 Days
✓ US-Based Support
-
Need Turnkey CNC Automation?
For Turnkeys and Custom Applications, we can help!
- Book a Turnkey Demo
Technical Specs & Downloads
Technical Specs
| Technical Specs | |
|---|---|
| Collet Type | 16C (collets not included) |
| Clamping Capacity | Up to 1.57in || 40mm round |
| Actuation | Pneumatic, air to clamp and air to release |
| Operating Pressure | 60 to 100psi || 0.4 to 0.7MPa |
| Max Speed | 3,500 RPM |
| Clamping Stroke | 0.16in || 4mm |
| Body Accuracy | Within 0.0004in || 0.01mm |
| Air Loss Behavior | Stays clamped |
| Body Diameter | Ø7.4in || Ø187mm |
| Mounting | Front mount, 4 × M8 |
| Air Ports | 2 × push-to-connect |
| Material | Alloy steel |
| Weight | 30lbs || 13.5kg |
Description

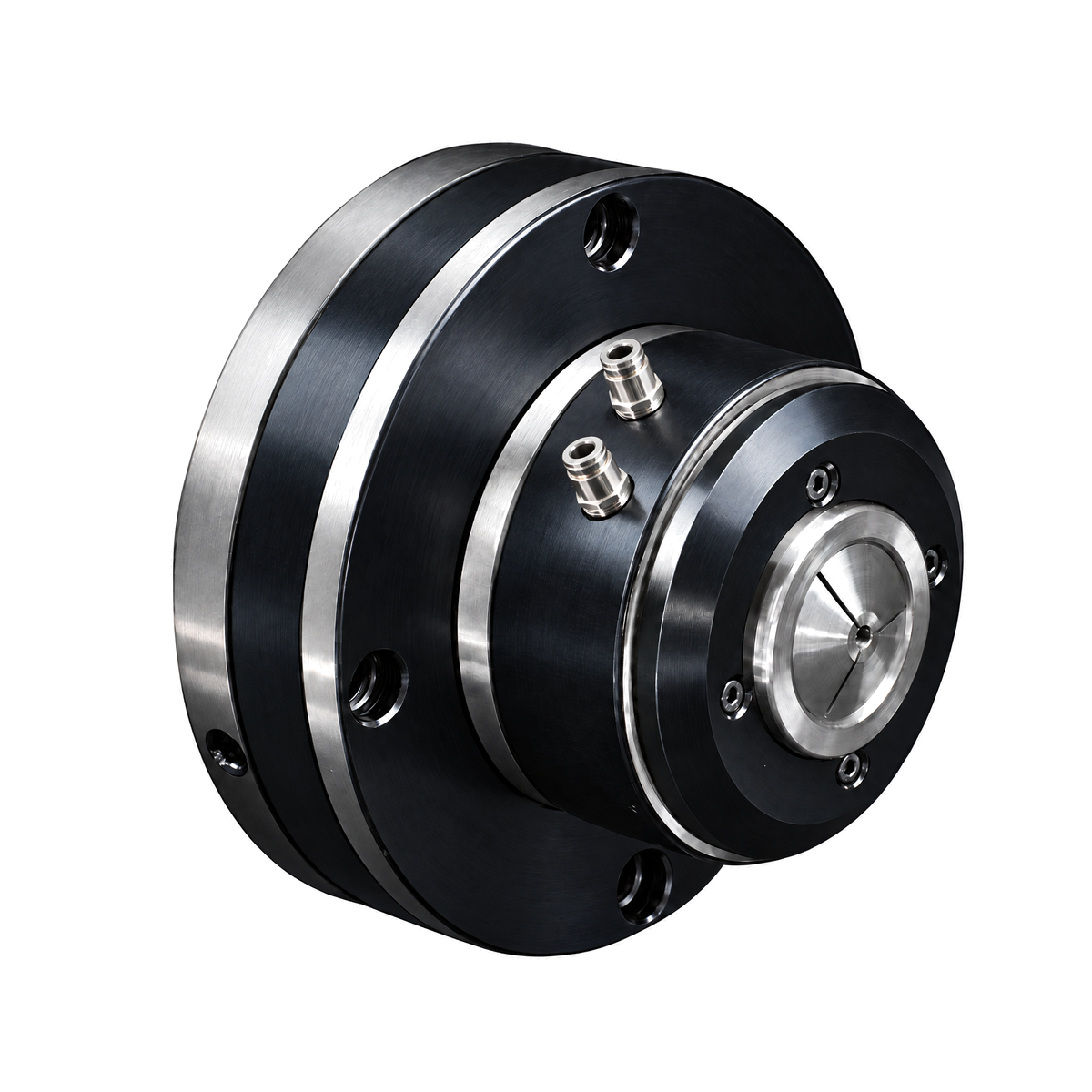

The RotoGrip™ 16C is a pneumatic collet chuck built for CNC automation. Shop air clamps and releases a standard 16C collet in about a second, so a machine, a spindle gripper, or a robot can load round parts and bar stock without an operator turning a wrench. The air housing stays put while the chuck spins, so your air lines never wind up.
Key Features
- Takes standard 16C collets for round stock up to 1.57" (40mm). Collets are sold separately.
- Air to clamp, air to release. Two ports, 60 to 100 psi shop air, controlled by M-code or a foot pedal.
- Built-in rotary air coupling. The chuck rotates up to 3,500 RPM while the air fittings stay stationary.
- Stays clamped if air is interrupted. The chuck locks mechanically, so a dropped air line does not release the part.
- Consistent part length. The collet does not pull back as it closes, so every part seats at the same depth.
- Through-bore design lets bar stock pass through the chuck for bar-fed work.
- Front mount with four M8 bolts and a 7.4" (187mm) body.
Where It Fits
Use the RotoGrip™ anywhere a pneumatic collet chuck beats a manual one: 4th axis rotaries and indexers on CNC mills, CNC lathe spindles, and dedicated automation fixtures. A 16C collet chuck grips round parts on their full circumference, which holds thin-wall and finished diameters without the marring you get from vise jaws or a 3-jaw chuck.
What's Included
- RotoGrip™ 16C pneumatic collet chuck
- Two push-to-connect air fittings
Not included: 16C collets, mounting adapter plate, air line, and solenoid valve.
Perfect Pairings
- MCodeAir™ Solenoid Kit to open and close the chuck from your CNC program.
- GimGripper™ Spindle Grippers to load parts or pull bar stock through the chuck with the machine spindle.
