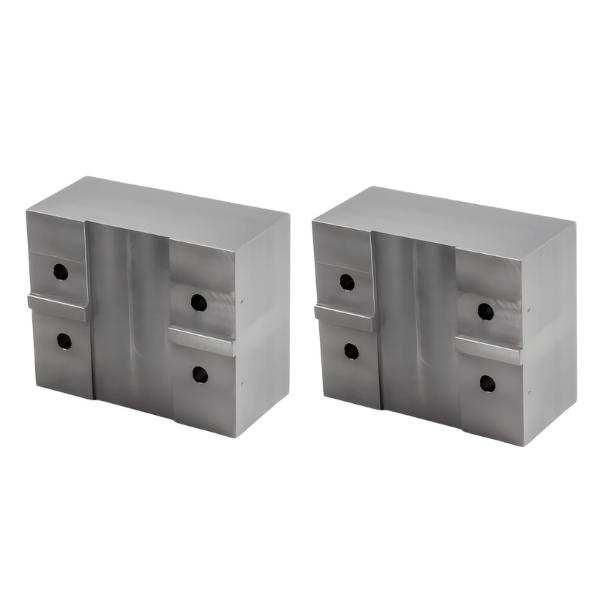

6" (150mm) AutoVise Pro™ Soft Jaws - Steel, Keyed for Pneumatic Vises
Quantity:
In Stock
✓ In Stock
✓ Ships in 1-3 Business Days
✓ Ships in 10-14 Days
✓ US-Based Support
-
Need Turnkey CNC Automation?
For Turnkeys and Custom Applications, we can help!
- Book a Turnkey Demo
Technical Specs & Downloads
3D CAD Viewer
Email address for CAD Model
Thanks for Submitting!
Your CAD Model will be sent to the email submitted within 1-2 minutes.
Your download is starting. The CAD email may be delayed.
If it didn't start, click here to download your CAD model.
Loading 3D
CAD Viewer
Technical Specs
| Technical Specs | |
|---|---|
| Compatible Vise | 150mm AutoVise Pro™ (Pneumatic, Self-Centering) |
| Jaw Style | Keyed Soft Jaws (Tongue and Groove) |
| Material | Machinable A36 Steel |
| Overall Width | 150mm || 5.91in |
| Overall Depth | 124mm || 4.88in |
| Overall Height | 73.8mm || 2.91in |
| Body Height | 70.0mm || 2.76in |
| Mounting Screw Spacing | 100mm || 3.94in |
| Weight | 9.6kg || 21.2lbs |
3D CAD Viewer
Email address for CAD Model
Thanks for Submitting!
Your CAD Model will be sent to the email submitted within 1-2 minutes.
Your download is starting. The CAD email may be delayed.
If it didn't start, click here to download your CAD model.
Loading 3D
CAD Viewer
Description
- Steel Construction: Made from billet steel, these machinable soft jaws are built to withstand serious production of your second-op CNC parts.
- Compatibility: Designed specifically for the Gimbel Automation 150mm Pneumatic Self-Centering Vise.
- Keyed Bottom: The keyed bottom pattern on these Soft Jaws allows both sides to be used, and for the soft jaws to be easily adjusted to the desired spacing.
- Convenient Availability: ✓ In Stock ✓ Ships from Los Angeles ✓Automate Your Machine Today!
