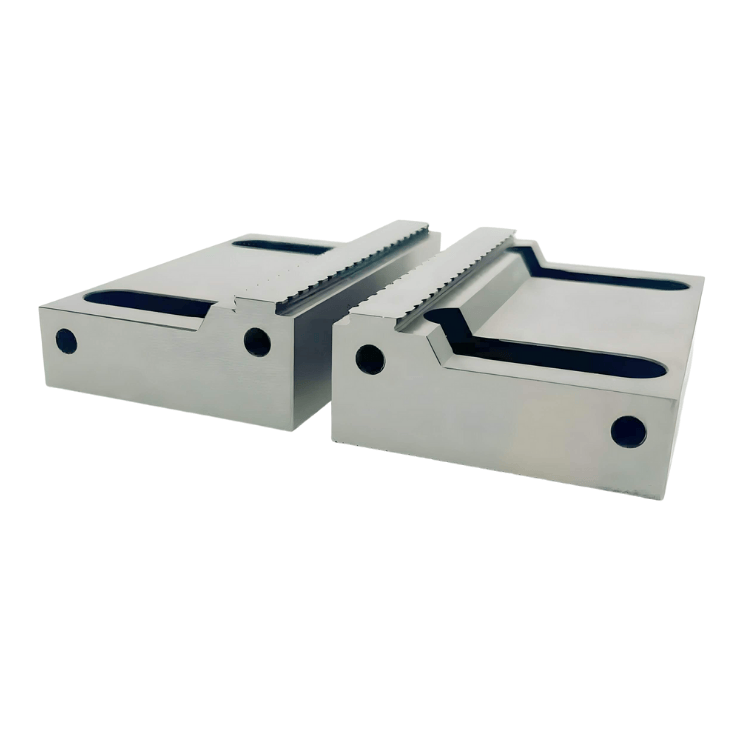

4" (100mm) AutoVise Pro™ Hard Jaws - Hardened Steel, Serrated for Pneumatic Vises
✓ In Stock
✓ Ships in 1-3 Business Days
✓ Ships in 10-14 Days
✓ US-Based Support
-
Need Turnkey CNC Automation?
For Turnkeys and Custom Applications, we can help!
- Book a Turnkey Demo
Technical Specs & Downloads
3D CAD Viewer
Email address for CAD Model
Thanks for Submitting!
Your CAD Model will be sent to the email submitted within 1-2 minutes.
Your download is starting. The CAD email may be delayed.
If it didn't start, click here to download your CAD model.
Loading 3D
CAD Viewer
Technical Specs
| Technical Specs | |
|---|---|
| Compatible Vise | 100mm AutoVise Pro™ (Pneumatic, Self-Centering) |
| Jaw Style | Serrated Hard Jaws |
| Material | Hardened Steel |
| Hardness | 40 – 45 HRC |
| Overall Width | 100mm || 3.94in |
| Overall Depth | 62.5mm || 2.46in |
| Overall Height | 27.1mm || 1.07in |
| Jaw Height | 19.0mm || 0.75in |
| Mounting Screws | M6 x 1.0, 70mm || 2.76in Spacing |
| Weight | 1.8kg || 4.0lbs |
3D CAD Viewer
Email address for CAD Model
Thanks for Submitting!
Your CAD Model will be sent to the email submitted within 1-2 minutes.
Your download is starting. The CAD email may be delayed.
If it didn't start, click here to download your CAD model.
Loading 3D
CAD Viewer
Description
Gimbel Automation 4" (100mm) AutoVise™ Hard Jaws - Hardened Steel, Serrated for Pneumatic Vises:
Get spare hardened jaws for your 100mm Pneumatic Self-Centering vise.
100mm Serrated Hardened Steel Jaws for your Gimbel Automation 100mm Self-Centering Pneumatic AutoVise™. Great for 1st Ops. In stock and ready to ship!
