The IntraLoad™ CNC Pallet-Loading System

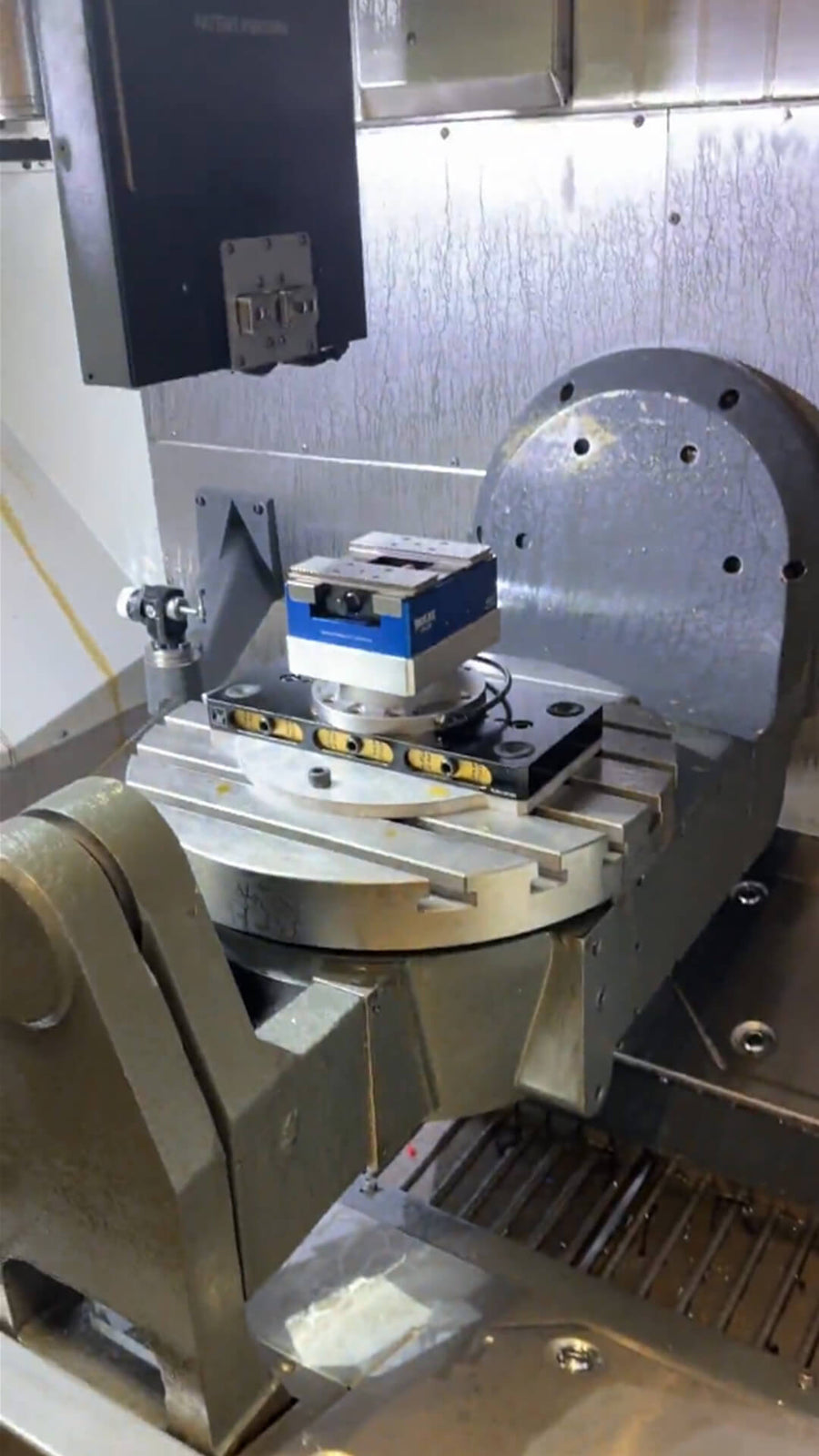

IntraLoad™ transforms your Haas UMC-500/UMC-750 or DVF 4000/5000 into a CNC pallet cell with no additional footprint. This CNC pallet automation solution is less than one-third the cost of the Haas Robot Pallet Loader (Haas RPL) or a dedicated pallet-pool, and takes up none of your precious floor space.
Compatible with Haas UMC and DN Solutions DVF 5-Axis CNC Machines, the IntraLoad™ system integrates seamlessly with your UMC or DVF Machine to give you between 9 and 24 pallets.
What if CNC Pallet-Tending Automation Could Be Easy & Affordable?
CNC Pallet Loading has always been the gold-standard of CNC Machine Tending Automation for good reason. But one thing has been holding shops across the globe back – the sky-high prices. It’s nearly impossible to get a pallet-system today for less than the cost of the base 5-Axis CNC Machine. The Patent-Pending IntraLoad™ delivers Pallet CNC Automation without the crazy prices.
Features
- Pallet-Loading with Zero Complex Integration
- Pallets are Inside the Machine
- Nine to Twenty-Four Pallets Possible
- Pricing Starting from $19,490
Machine Compatibility
Deployable IntraLoad™ Actuator
Just like all our products, the IntraLoad™ System works leveraging the kinematics of your existing 5-Axis Moving-Head CNC Mill. The system bolts either to the side or bottom of the Spindle Head.

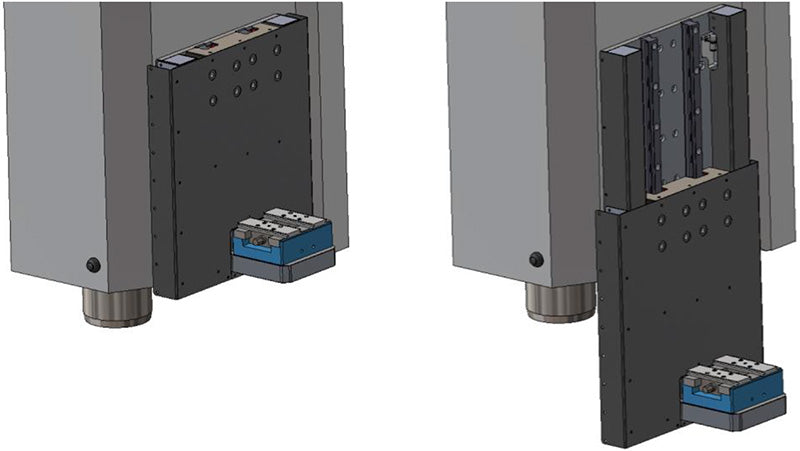

The IntraLoad™ Actuator deploys downwards to allow clearance for pallet retrieval and Pneumatically tucks itself away when not in use. This way, it has no negative affects on 5-Axis Machining clearances. The System is pneumatic with optional interlock and position sensors.
IntraLoad™ Actuator
Pallets +
Cleats

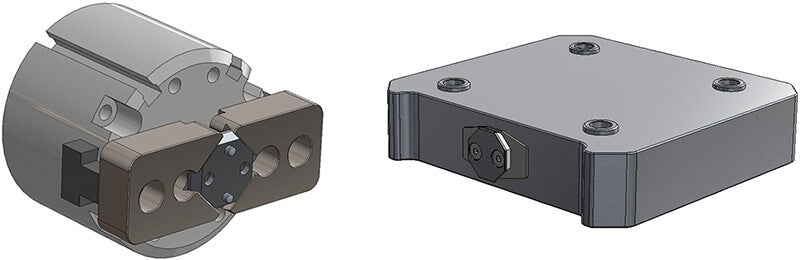

For the most reliable pallet-grabbing possible, we leveraged the 5thAxis Low Profile Cleats with our own proprietary Compact High-Force Gripper System. This system is rated for 25lbs and has been tested to withstand 75lbs loads.
*Gimbel is an Official 5thAxis OEM Distributor
Pallet Gripping System
IntraShelf™ Shelving System

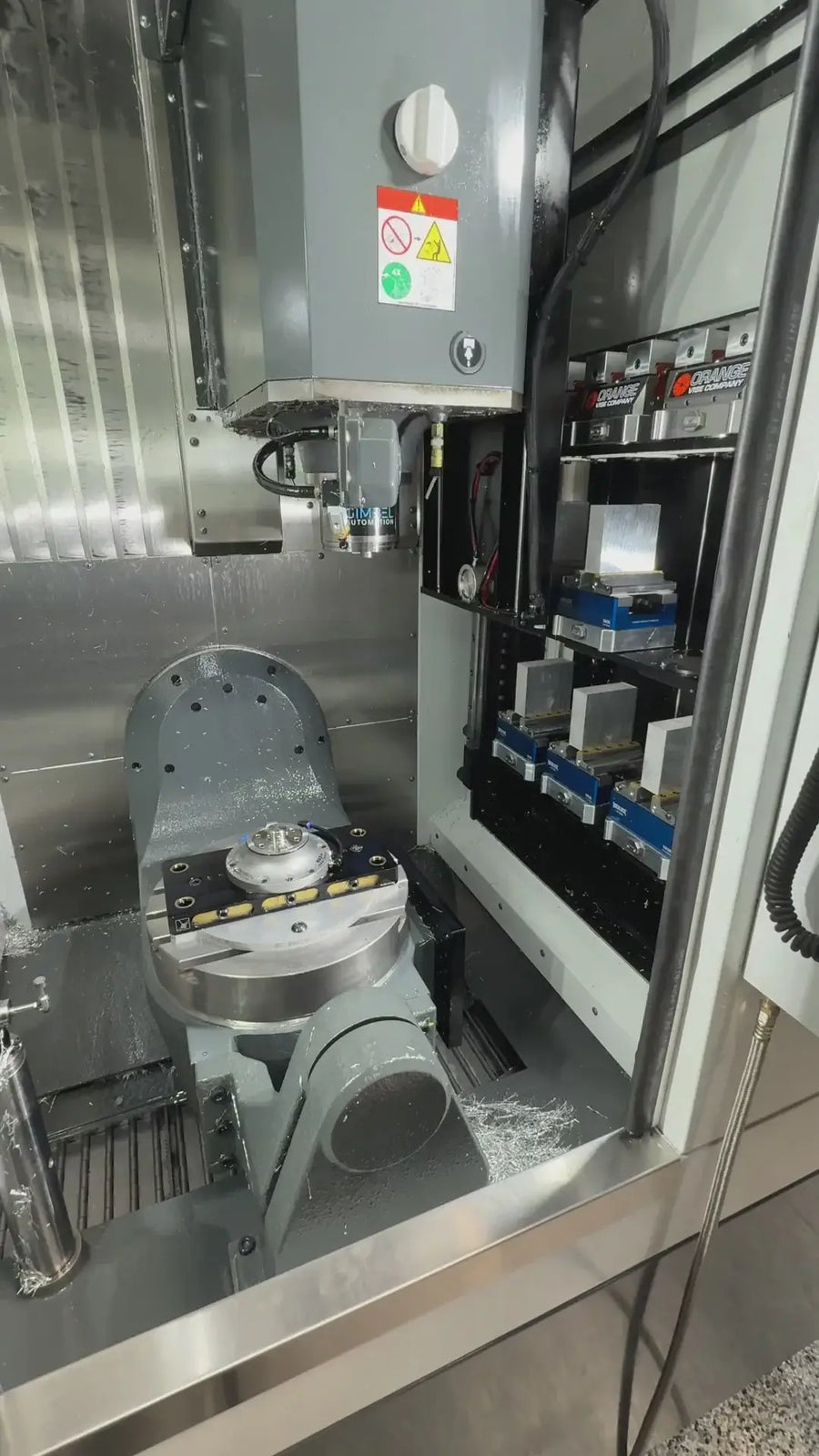

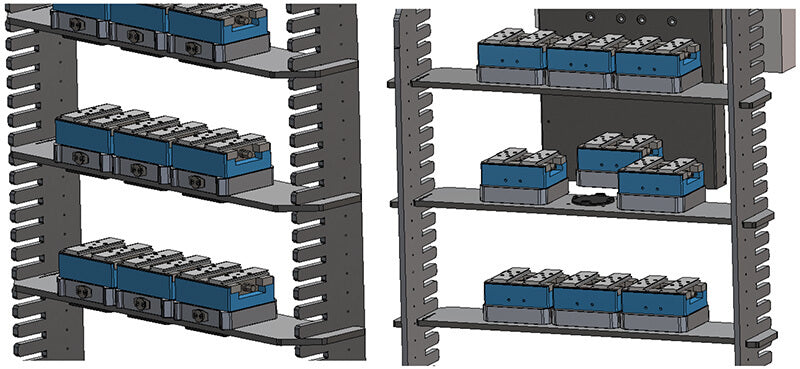

The shelving for Pallet-Loading Systems has always been complicated and expensive, full of safety interlocks and complications. Instead, the IntraShelf™ System put the shelving INSIDE of the machine, which is a kinematically accessible and safety-interlocked area.
Keeping the shelves clear from chips is surprisingly straightforward, with a variety of options available. The most to least effective options are (1) an internal Auto-Door, (2) a moving GuardPallet™, or (3) a directable coolant washdown system.
IntraShelf™ System
Discover How Gimbel’s CNC Machine Tending Automation Can Transform Your Production
Max-4 on IntraLoad™
At the heart of any good form of CNC Pallet Automation is an excellent zero-point system. After testing nine different systems, nothing could come close to the Max-4 Pallet System.
Featuring 15,000lbs of pull force and the best-in-class repeatability of 0.0002”, we combined the Max-4 System with our special Gimbel Pallets to create an incredibly reliable and flexible automation system.
*Gimbel is an official Pierson distributor for the Max-4 System
Max-4 Zero Point System
LiteVise on IntraLoad™
To bring the IntraLoad System to life, we partnered with 5th Axis and Orange Vise to deliver you world-class workholding solutions.

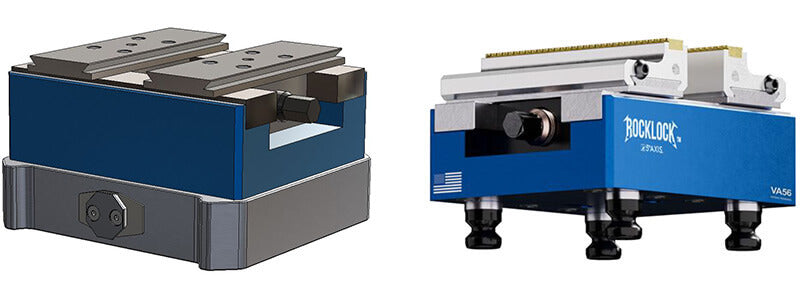

The 5thAxis LiteVise is an excellent solution for pallet-loading given its great holding power and lightweight aluminum body with inset steel rails.
*Gimbel is an Official 5thAxis Distributor
Workholding from 5thAxis*
Helios on IntraLoad™

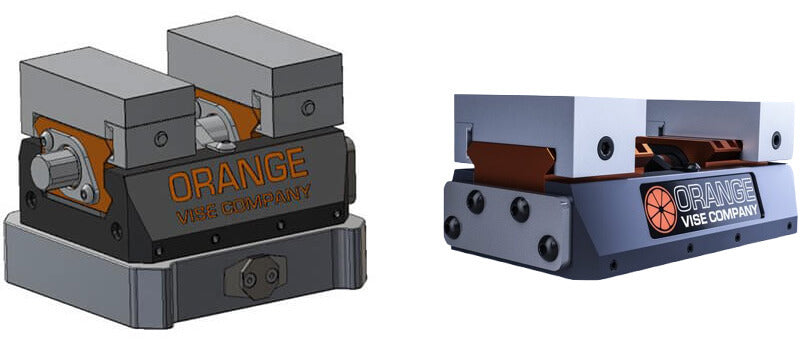

Another excellent option for workholding is the Helios System from Orange Vises. We recommend this system when using Soft Jaws in your IntraLoad machining operations.
The Helios is also an aluminum body with inserted rails. This system features quick-change soft jaws that make swapping between different vise configurations extremely fast.
*Gimbel is an official Orange Vise Distributor
Workholding from Orange Vise*
Occasional Manual Setups?
No matter how automated you are, you sometimes will still need manual setups. We have you covered with an optional 5thAxis Subplate designed to allow your Pierson Max4 for the IntraLoad to come right off.
We offer the entire system as a kit, including the Spacer, Rotary Union, 5thAxis ROCKLOCK base, and the Max4 Pallet System.
*Gimbel is an Official 5thAxis OEM Distributor
Optional 96mm Pullstud Sub-Plate
FAQS
Unlike a Haas Robot Pallet Loader (Haas RPL), IntraLoad™ requires no external robot or additional floor space. It provides CNC pallet automation using your machine’s spindle.
A CNC pallet-loading system is an automated system that manages multiple pallets for machining. IntraLoad™ creates an internal CNC pallet cell by integrating pallet storage and transfer inside your machine enclosure. The IntraLoad™ is able to accomplish pallet loading by cleverly leveraging your machine's existing kinematics combined with our patent-pending IntraActuator™ and internal shelving system.
Yes, IntraLoad™ is designed for incredibly low maintenance. It uses your machine’s existing kinematics, meaning that as long as your CNC Machine is maintained, there is very little to wrong on the IntraLoad™. The only regular maintenance required is wiping down the auto-door and greasing the linear rails.
Pricing for IntraLoad™ starts at $19,490, offering an affordable alternative to external Haas or DN Solutions pallet automation solutions. Typical systems with options usually cost approximately $30,000 (without workholding). With workholding included, most systems are still well under $50,000.
The number of pallet pools that the IntraLoad™ Pallet Pood system can support depends on the pallet size and machine model. For the UMC-500 with typical 6”x6” pallets with VA56 LiteVises, the system can support up to 9 pallets. For the Gen1/2 UMC-750, the system supports 10 pallets. For the Gen3 UMC-750, the system can support up to 16 pallets 6”x6” pallets.
The IntraLoad™ system is rated to 50 pounds per pallet. Each system is cycle-tested with 75-pound pallets.
